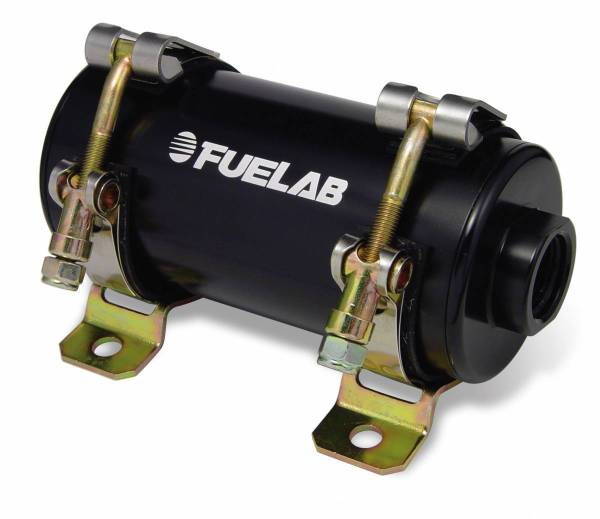

190GPH @ 45PSI Variable Speed Brushless Fuel Pump - 42401

190 GPH @ 45 PSI, 100 PSI MAX - RATED UP TO 1900HP - Throw in as much boost as you want, this model will support up to 1900 horsepower at high pressures.

Pump Features

• Compatible with gasoline, diesel, methanol, and ethanol
• High efficiency sling vane positive displacement pump
• Special housing shape for extremely quiet operation and steady pressure
• Carbon 9-vane construction with pressure balanced rotor for high reliability
• Backed by a limited lifetime warranty

Motor Features

• Lightweight super-efficient dc brushless motor reduces current draw
• Low mass rotor for high speed reaction to changes in speed and flow
• Powerful high flux density Neodymium rare earth magnets
• No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
• Wet motor design, no dynamic shaft seals that can wear out

Electronic Features

• Internal speed controller for variable flow operation
• 12 to 24 volt vehicle electrical system compatibility
• Accepts PWM input for speed control
• No expensive add-on voltage reregulators or pump controllers required!
• Continuous duty - motor speed can be adjusted to meet fuel demand

Construction Features

• Compact, lightweight design, less than 3 lbs, overall length 6.9", diameter 2.63"
• Billet Aluminum Construction with anodize per MIL-A-8625, Type II
• High quality mounting brackets included
• Long-life, multi-fuel compatible Fluorosilicone static seals
• Accepts standard or port style –10AN fittings
